Heybike Horizon
A full-suspension folding step-through on 24" fat tyres with a 1400W-peak hub, Horst-link rear end, gradient colours and a low, easy stance.
Make It Yours
Colour Options
Check availability →
Watch the Review
Full Video Review
Subscribe on YouTube →
Coming Soon
Out in the World
Heybike Horizon in the Wild
Up Close
Detail Gallery
The Engineering
Small Wheels, Full Suspension
1400W-Peak Hub
692Wh · 80 Nm
Geared Hub Motor
A brushless geared rear hub peaks at 1400W and 80 N·m for a 28 mph top speed.
692Wh Battery
A removable 54.6V 692Wh pack is good for up to 55 miles; a 4A charger tops it up quickly.
Throttle + PAS
Twist throttle plus pedal assist, LCD display with app connectivity.
Full-Suspension Comfort
Horst-link · hydraulic fork
Real Rear Suspension
A Horst-link rear end and hydraulic front fork make the small-wheel ride genuinely plush.
24" Fat Tyres
24" × 4.0" fat tyres with puncture protection lower the stance without losing grip.
Hydraulic Discs
Hydraulic disc brakes front and rear.
Fold & Step Through
Low-step · folding
Low & Easy
A low-step folding frame makes this one of the easiest bikes here to mount and stow.
Compact Fold

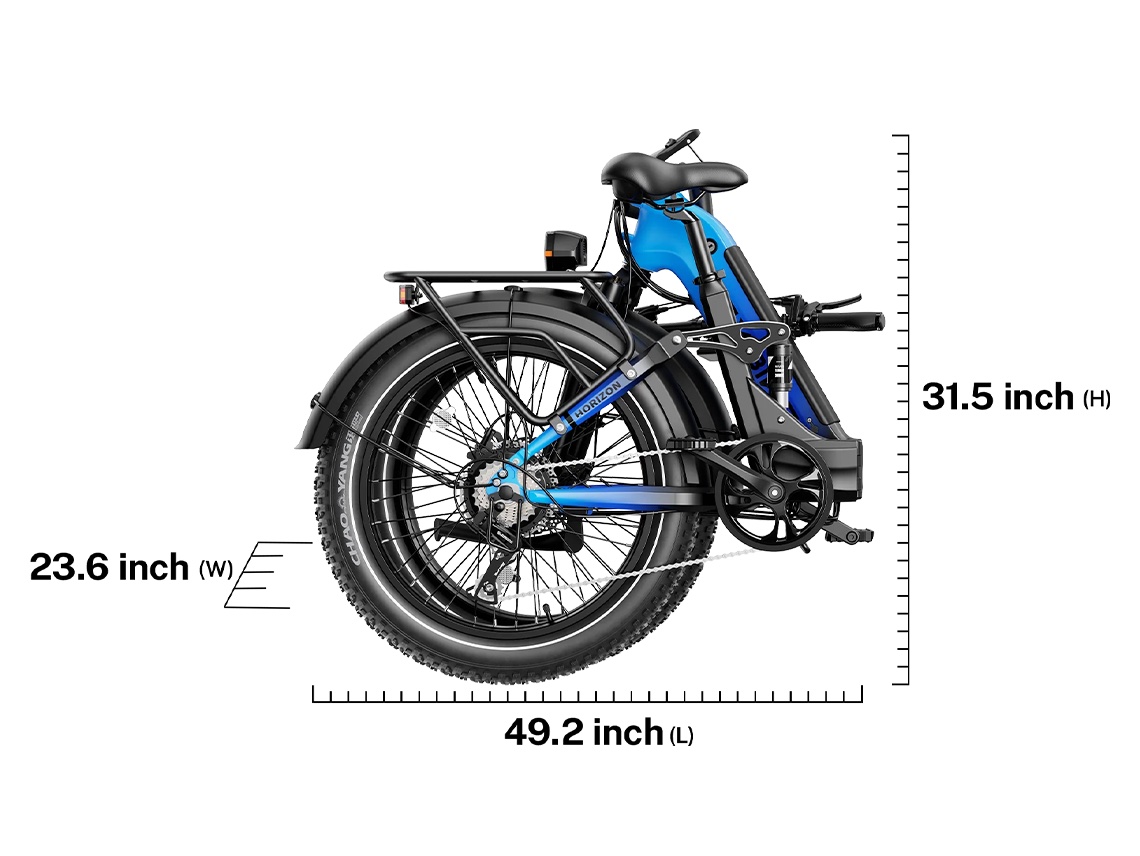

Folds to 49.2 × 23.6 × 31.5" for storage and transport.
Gradient Colours
Four finishes including eye-catching gradient options.
The Cockpit

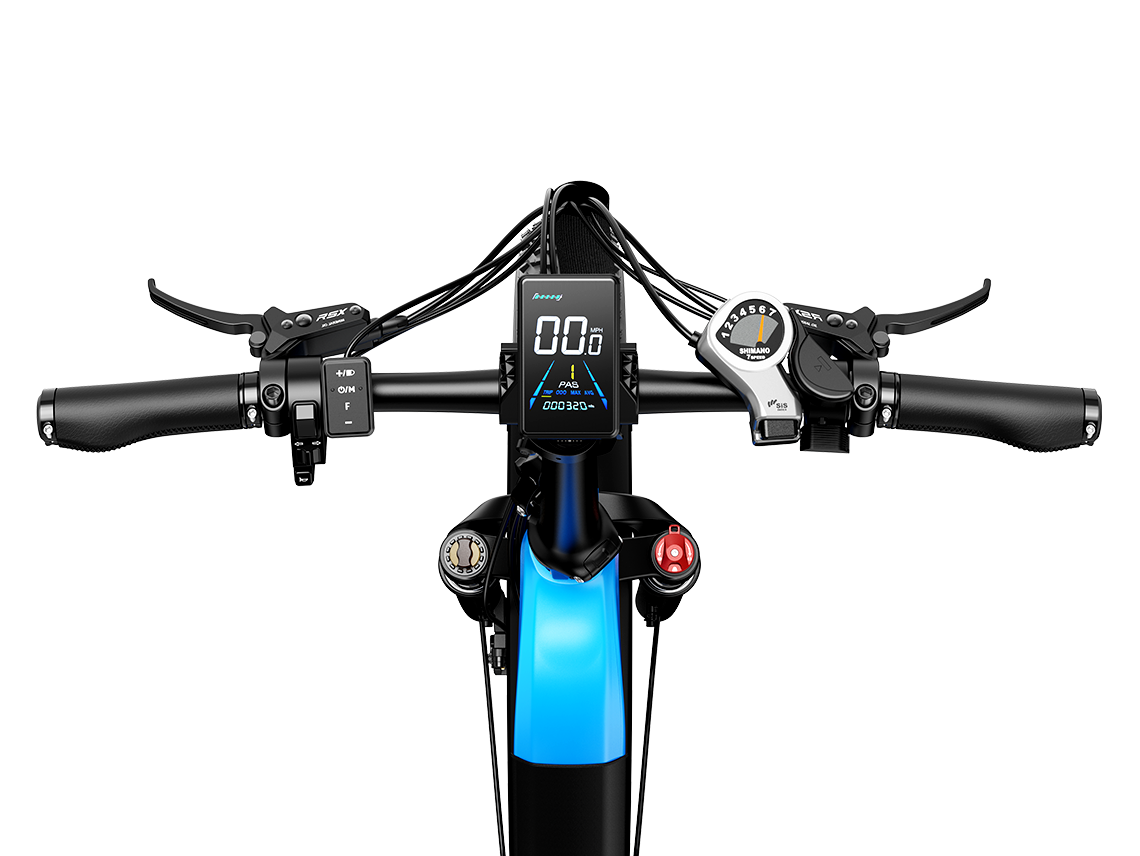

LCD Display, App-Connected
LCD Display + App + Auto Headlight
The Horizon runs a clear LCD display with app connectivity for PAS tuning and ride data.
An auto-on LED headlight and integrated brake-light taillight keep the low-slung folder visible on the commute.
Find Your Fit
Size & Fittings
Horizon 24" Fat · Folding
Will It Fit You?
- Weight79.4 lb
- Max load330 lb
- Wheels24" × 4.0" fat
- Folded49.2 × 23.6 × 31.5"
- FrameLow-step folding
The Horizon drops to 24-inch wheels and a low-step folding frame for an easy, planted stance, then adds real full suspension for comfort. At 79.4 lb it's a heavy fold, but the 330 lb payload keeps it practical.
The Numbers
Full Specifications
Source: heybike.com →⚡ E-System
🚦 Performance
🔧 Chassis & Brakes
✨ Features & Options
The Bike Cave Verdict
Ben's Take
The Horizon is the comfort-first folder: 24-inch fat tyres and a low-step frame drop the stance so anyone can step aboard, then a Horst-link rear end and hydraulic fork give it a genuinely plush ride for a small-wheel bike. Four colours — including some lovely gradients — and a $1,399 price make it easy to like. It's a heavy fold at 79.4 lb, and range is a modest 55 miles, but as an approachable, comfortable around-town bike it looks strong. Camera review to come.
👍 What stands out
- Full suspension on an easy, low 24" frame
- Very approachable step-through stance
- Four finishes including gradient colours
- 1400W-peak hub, 28 mph, hydraulic brakes
- Keen $1,399 price
👎 What to know
- Not yet reviewed on camera — verdict and score to come
- Heavy fold at 79.4 lb
- 55-mile range is modest
- 7-speed gearing and LCD are basic
