X-Class 60V PPB
The bike that put Ariel Rider on the map, reborn at 60 volts. The Performance edition runs a 2,700W-peak hub making 132 Nm, a 35Ah dual battery, an inverted fork and a Fastace coil shock — uncorked for 40+ mph on private property.
Watch the Review
Full Video Review
Watch on YouTube →
Every Angle
Studio Gallery
In The Details
Up Close
On The Road
Riding Shots
The Engineering
Built On Better Technology
60V Rear Hub Motor
1,500W rated · 2,700W peak · 132 Nm
From 52V To A 60V Monster
The old X-Class 52V was iconic; the 60V update gives it a bigger battery envelope and a stronger hub — 1,500W rated, 2,700W peak, and 132 Nm of torque.
Ships Legal, Unlocks Big
Out of the box it's a Class 2, 20 mph bike — legal anywhere. Ariel Rider keeps the unlock quiet: it's on you to enable the extra class modes at your own risk.
40+ mph On Private Property
Uncorked, the Performance edition will push past 40 mph depending on rider weight — proper moped speed.
60V 35Ah Dual Battery
20Ah in-frame + 15Ah · dual chargers
Two Packs, 35Ah Total
A 20Ah pack hides in the frame and a 15Ah pack sits up top for 35Ah at 60 volts — the Performance edition ships with the second battery and charger included.
85–105 Miles Of Range
That's a claimed 85–105 miles of range, and both packs charge on their own 60V 3A ST3 smart chargers.
Thermal-Resistant Cells
High-grade cells with thermal-resistant tech and UL-compliant construction sit behind the big 60-volt output.
Full-Suspension Moto Frame
Inverted fork · Fastace coil
Sur-Ron-Style Suspension
The Performance edition upgrades to an inverted 100mm thru-axle fork and a Fastace BDA53RC 80mm rear coil — the kind of suspension you'd expect on a light electric dirt bike.
Reinforced Hydroformed Frame
A hydroformed aluminum frame with reinforced welds carries the moto bench seat, dual battery and a 350 lb payload.
20 × 4.5 / 5.0 Fat Tires
Innova anti-puncture fat tires — 4.5" up front, a monster 5.0" out back — put the power down and soak up the hits.
The Cockpit
Everything On One Screen
Color Display + App + OTA Updates

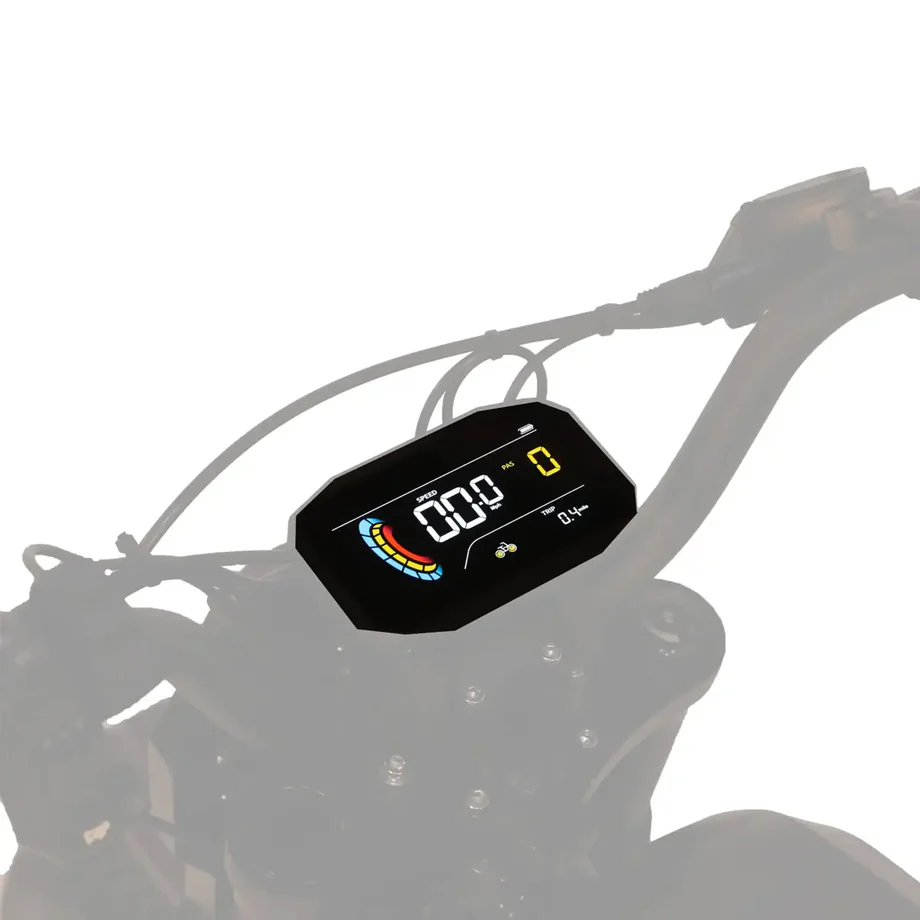

The X-Class runs a color display with real-time ride data — speed, battery, power and mode — and pairs to the app for settings and over-the-air updates.
A dual-lens halo headlight throws 1600/800 lumens on high/low, backed by front and rear turn signals, a self-flashing brake light, DRL and a horn built into the headlight. It's a full moto lighting package.
Find Your Fit
Size & Fittings
X-Class 60V PPB 20″ Fat · Full-Sus
Will It Fit You?
- Seat height34.5"
- Standover31.6"
- Wheelbase46.8"
- Overall length70.7"
- Reach19" – 29"
- Payload350 lbs
- Weight116 lbs
With a 34.5" seat and a 46.8" wheelbase, the X-Class fits like a small moto — most riders will get their toes down but not flat-footed. It weighs 116 lbs in Performance trim and is a PPB: shipped uncorked for off-road / private-property use, not street-legal by default.
The Numbers
Full Specifications
Source: arielrider.com →⚡ E-System
🏍️ Performance
🔧 Suspension & Brakes
✨ Features & Options
The Bike Cave Verdict
Ben's Take
The X-Class 52V was one of the most iconic e-bikes ever made — and then the whole market caught up and passed it. The 60-volt reboot fixes that. This Performance edition is the fully-loaded one: a 2,700W-peak hub making 132 Nm, a 35Ah dual battery hidden in and on the frame, a Sur-Ron-style inverted fork with 100mm of travel, and a Fastace coil out back. It ships as a tame Class 2, 20 mph bike — legal anywhere — but as a PPB it uncorks to 40+ mph on private property. What sells me is the value: stack it against a Motor Goat or a Lyric Graffiti X and the X-Class undercuts them while bringing motorcycle-grade suspension and lighting. At $2,499 with my code it's one of the best-value 60-volt moped bikes going. Watch the full ride up top.
👍 What stands out
- 60V reboot fixes everything the old 52V got left behind on
- Sur-Ron-style inverted fork + Fastace coil — real moto suspension
- 35Ah dual battery, 85–105 mi of range, second pack included
- Genuinely great value vs Motor Goat / Lyric Graffiti X
- 1600 lm halo headlight and full turn-signal lighting package
👎 What to know
- Single-speed — no gears to pedal it home if you run dry
- 116 lbs and moped-sized — this isn't a bicycle
- PPB — off-road / private-property use only
- Toe-down for shorter riders at a 34.5" seat height
Kit it out
Accessories made for the Ariel Rider X-Class 60V PPB
All Ariel Rider accessories (11 matched) →Ariel Rider builds these for this bike. Fitment comes from Ariel Rider's own product listings, not our guesswork.

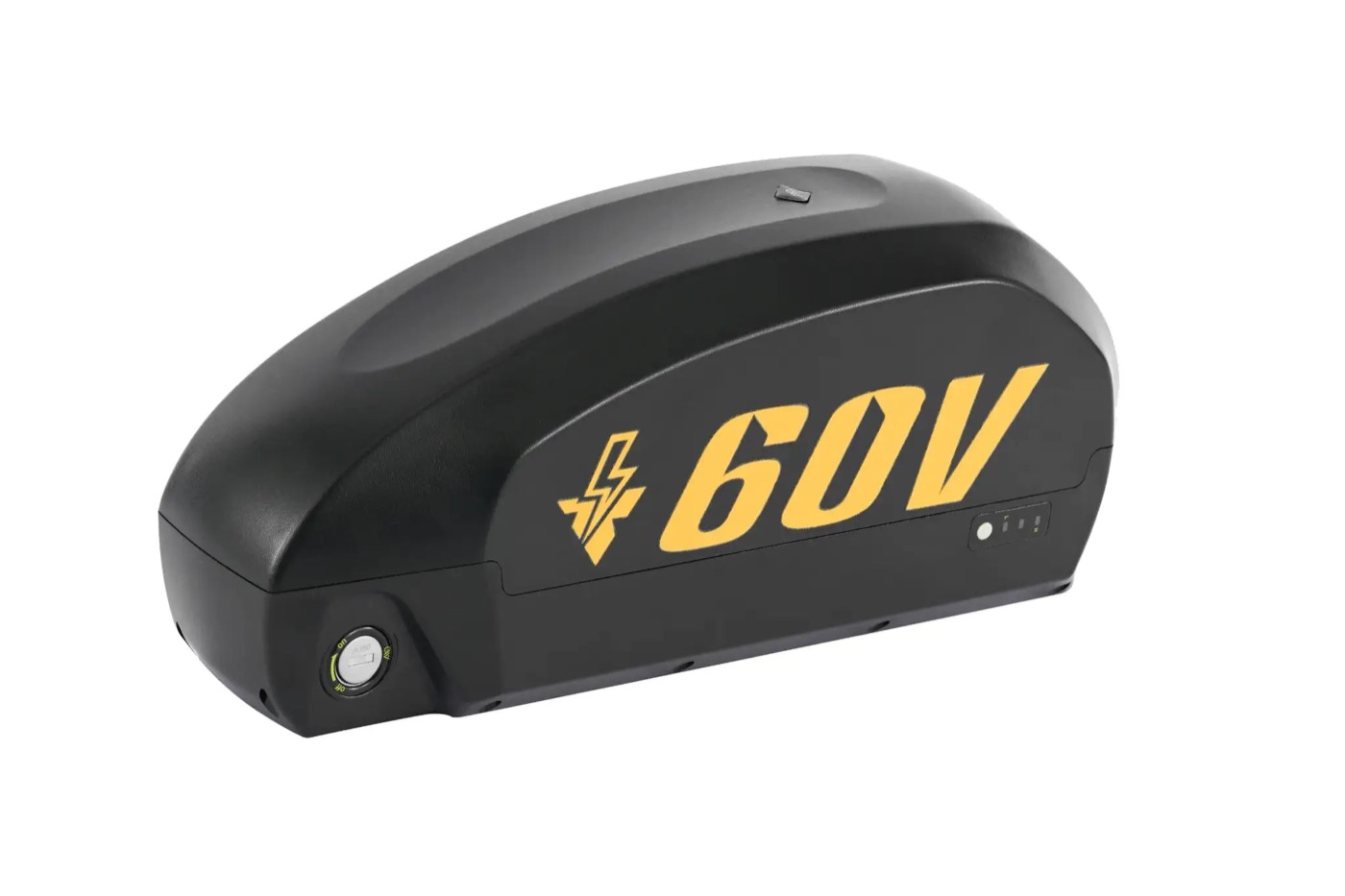

Top Tube Battery$599→

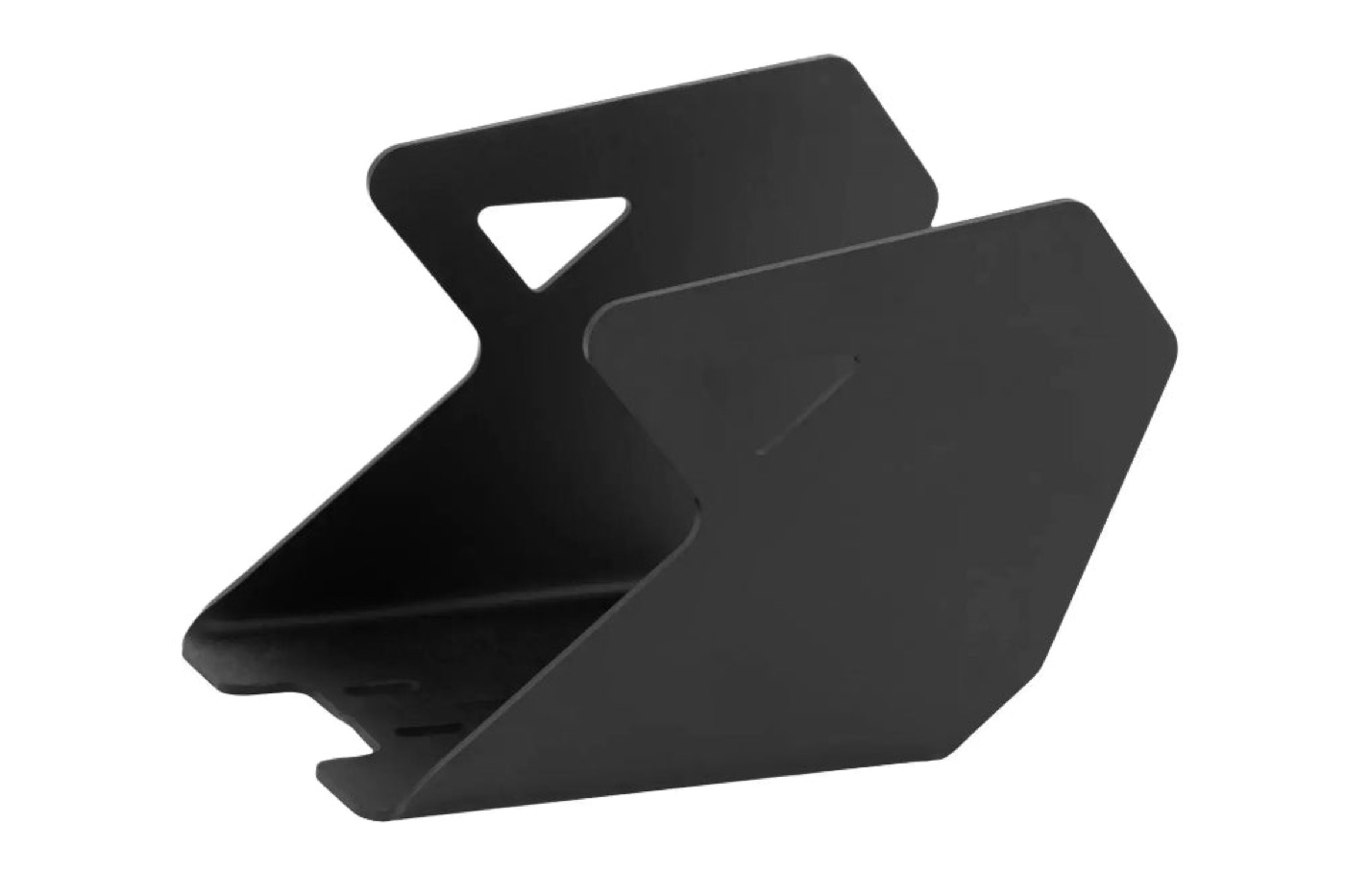

Battery Shield$49→

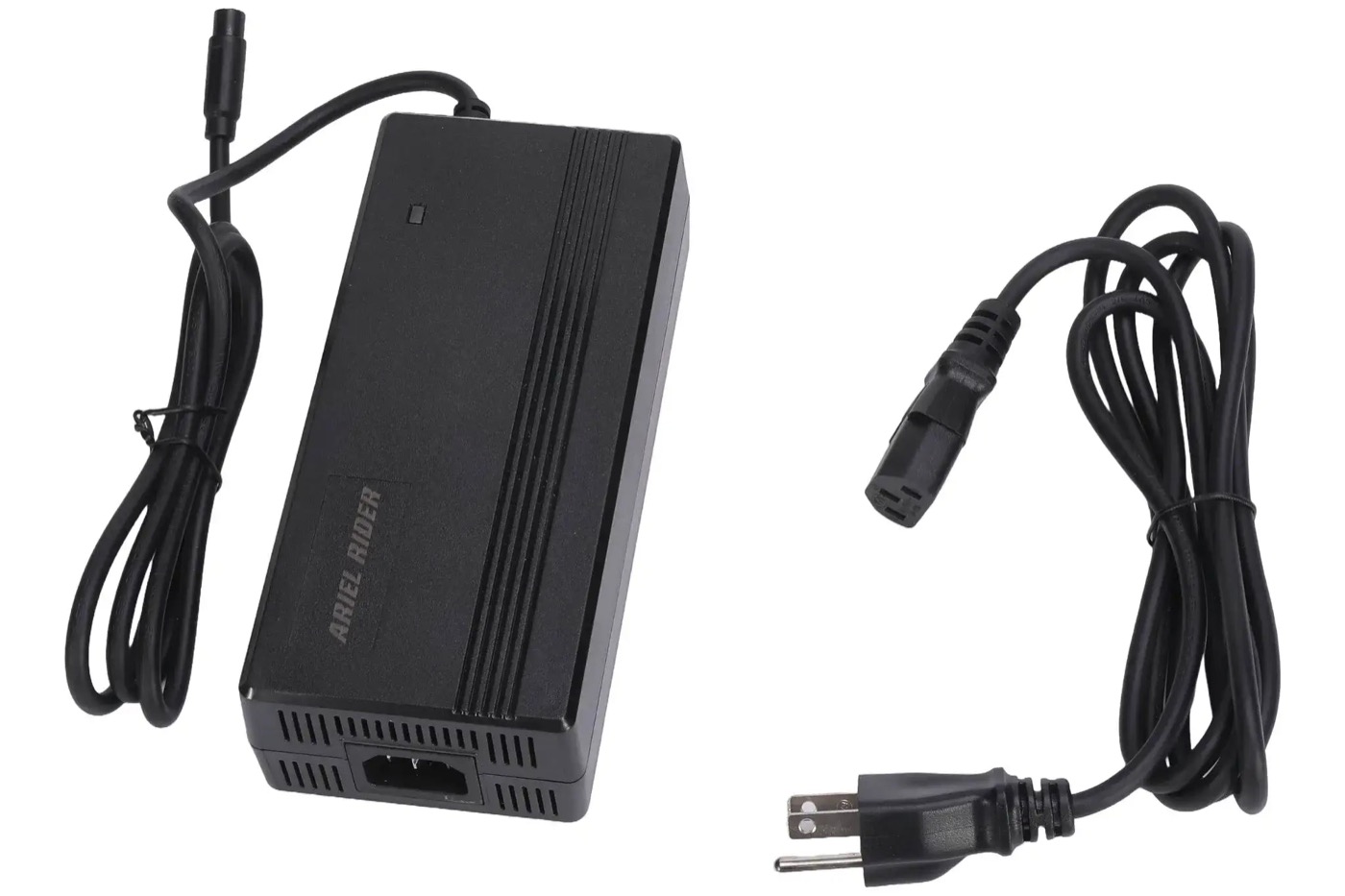

Charger 60V 3A$109→

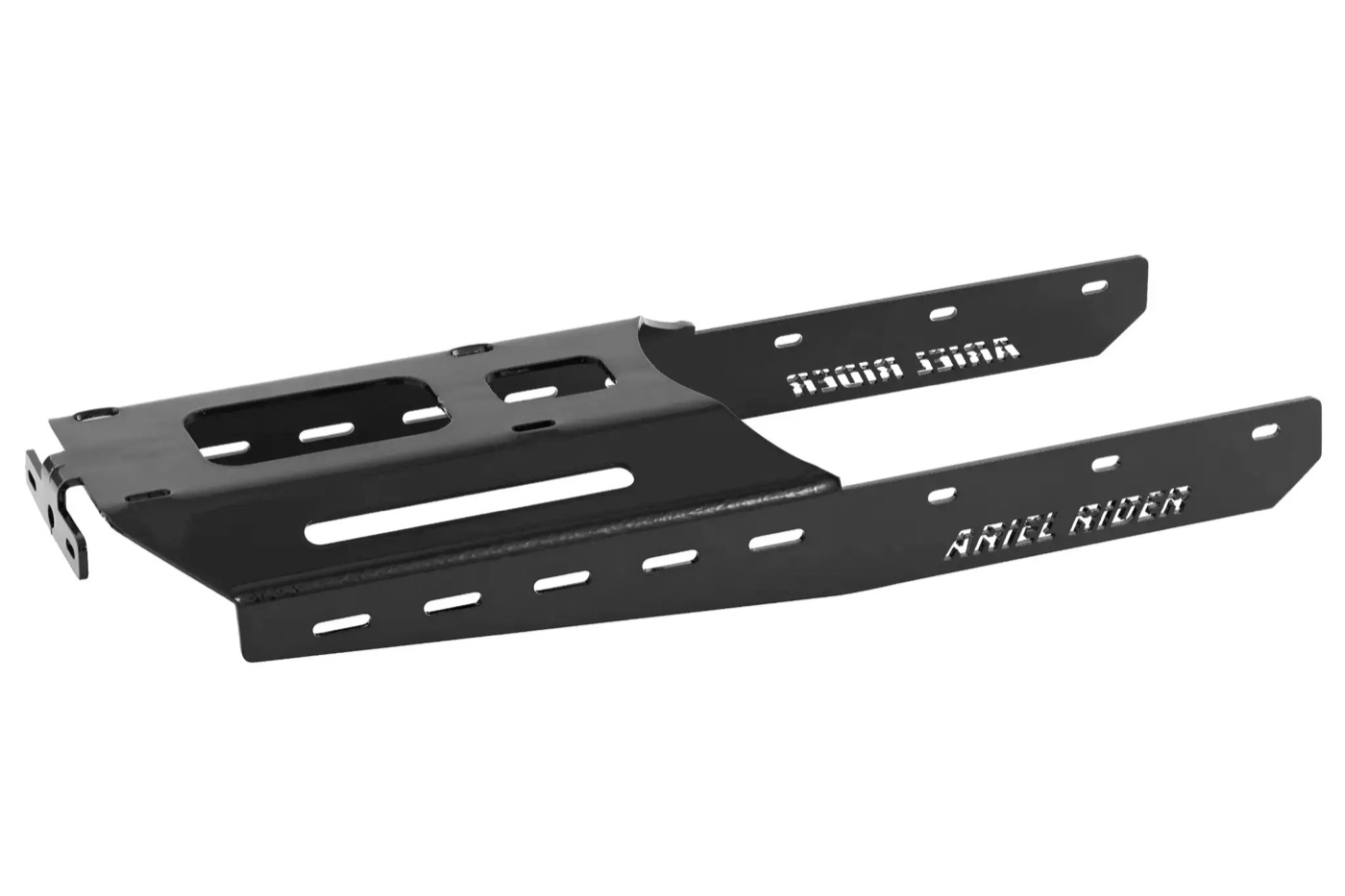

Rear Rack for X-Class 60V$129→
Rear Rack for X-Class 60V$129→

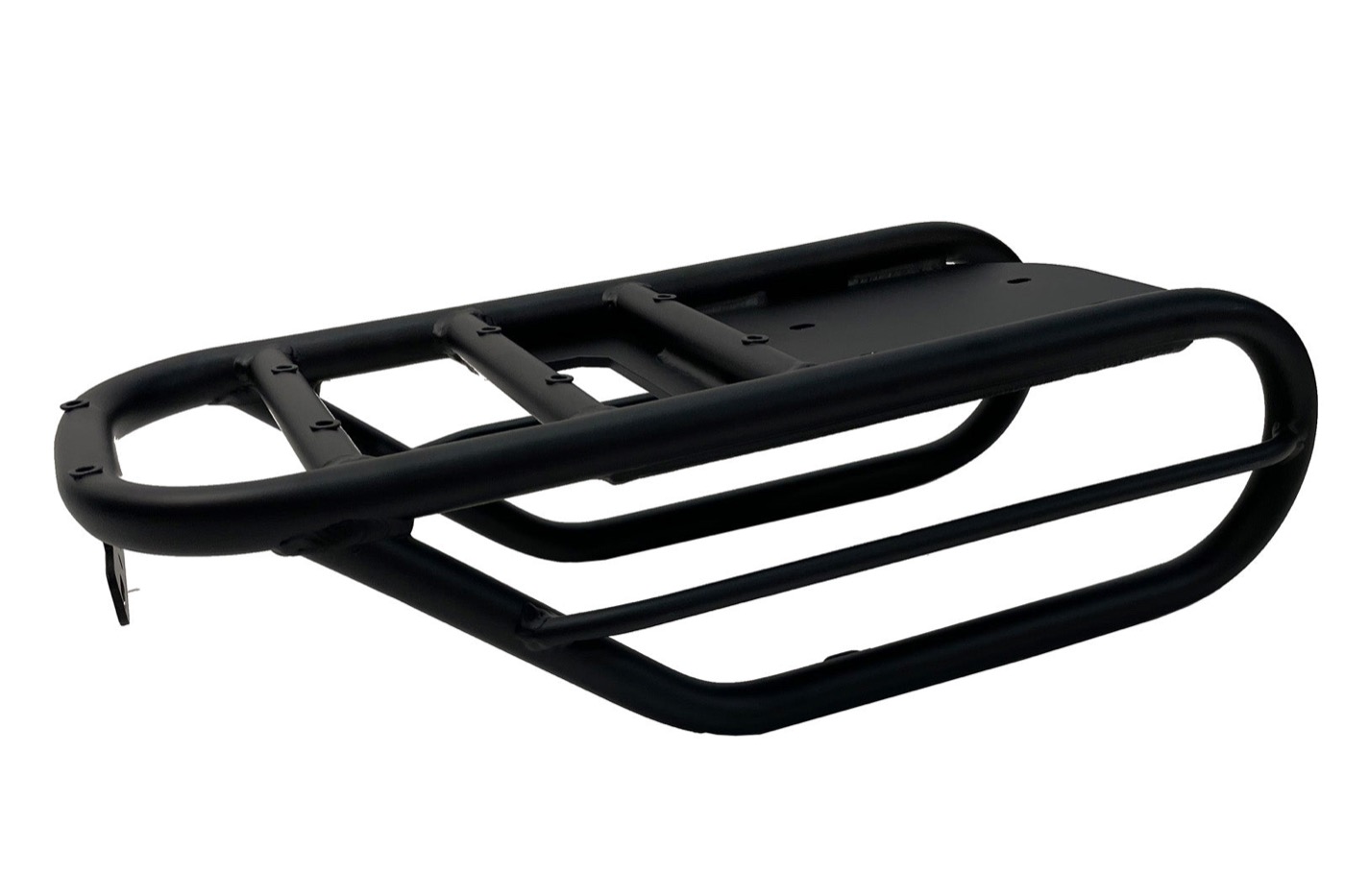

Cargo Plus Rear Rack$69→
Electric Bike Seats - Grizzly & X-Class Ebike Saddle - Ariel Rid$9→

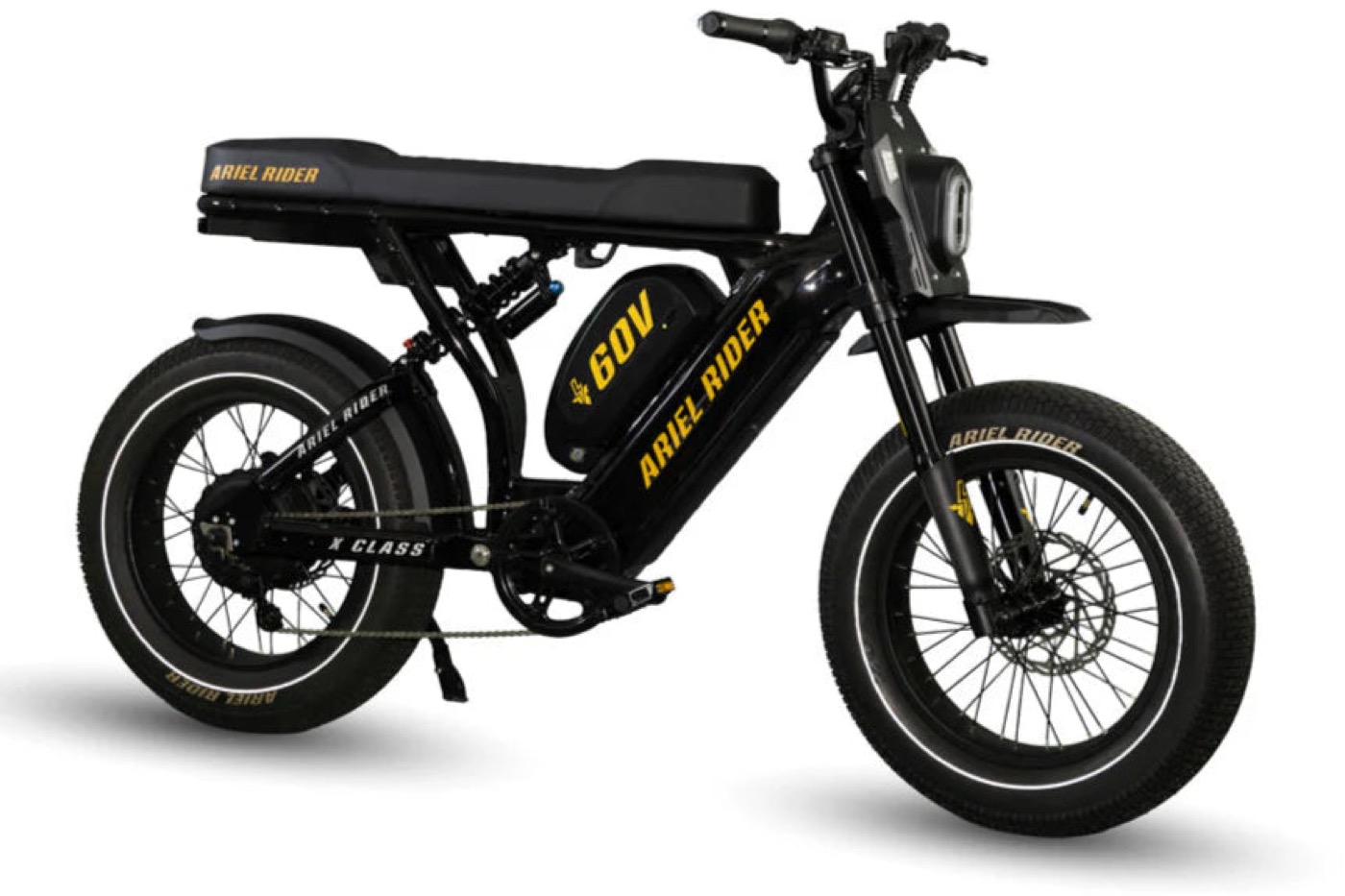

Extended Saddle$139→

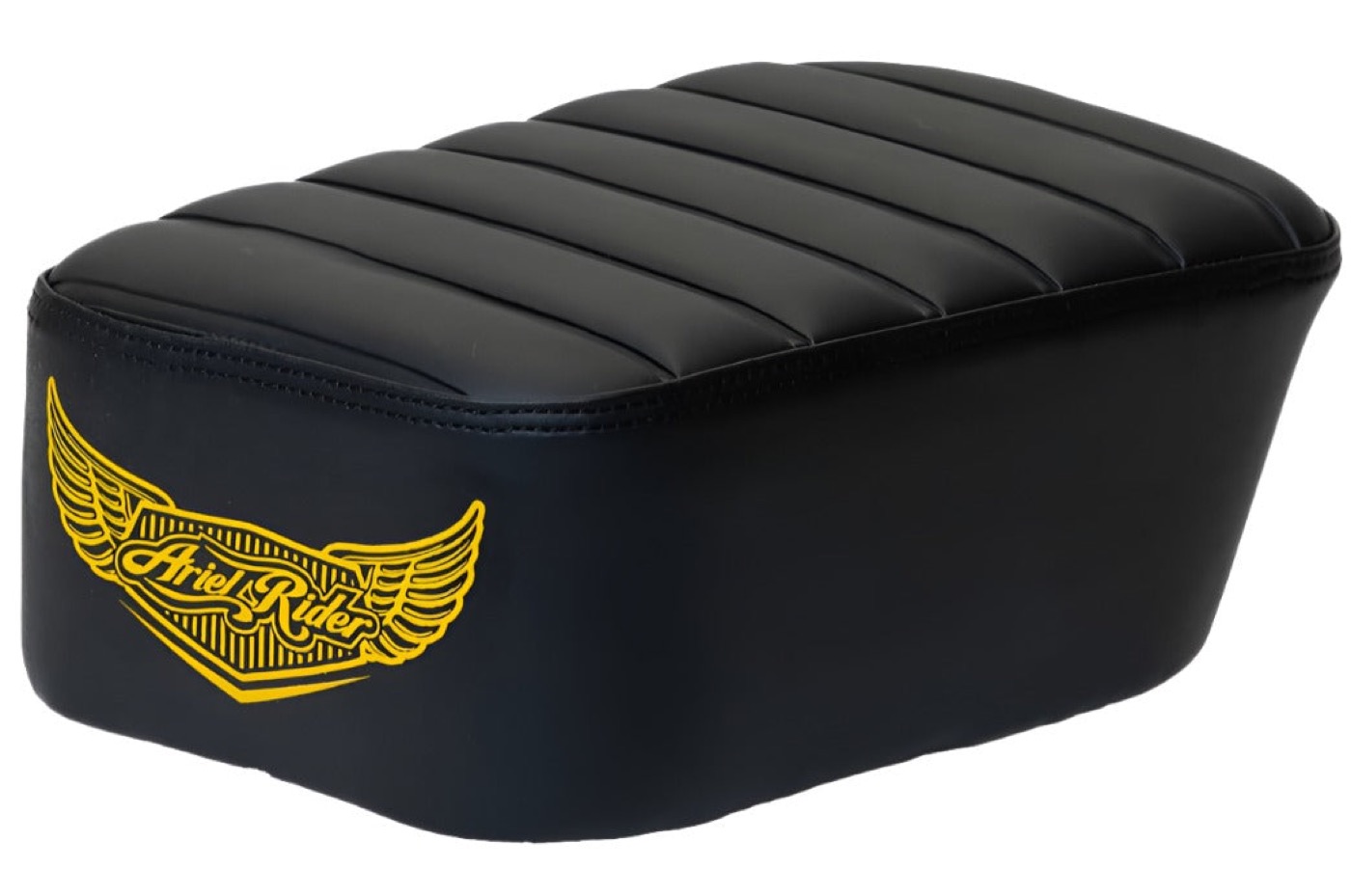

Extension Saddle$59→

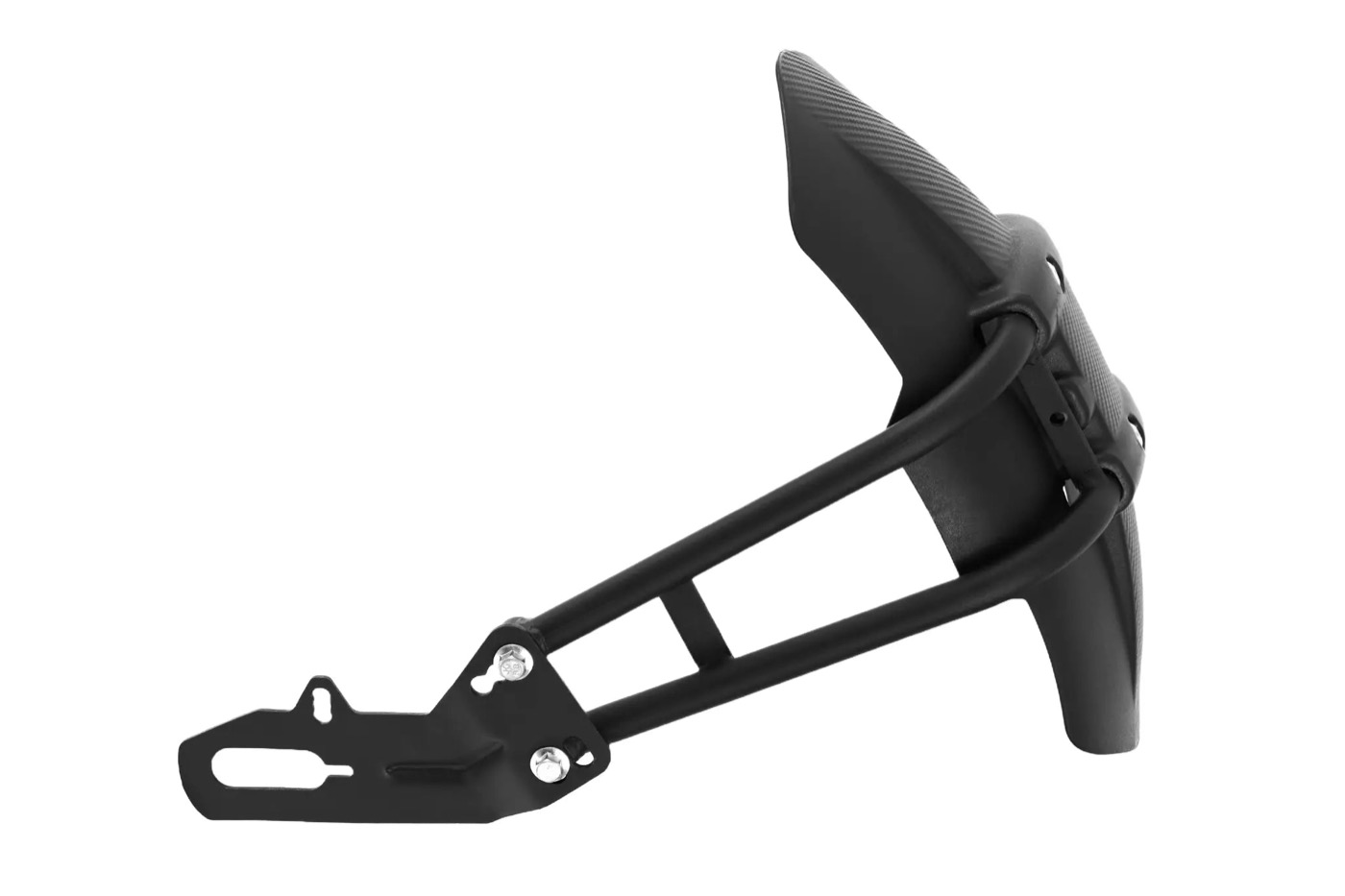

Fender Splash Extender X-Class 60V$49→

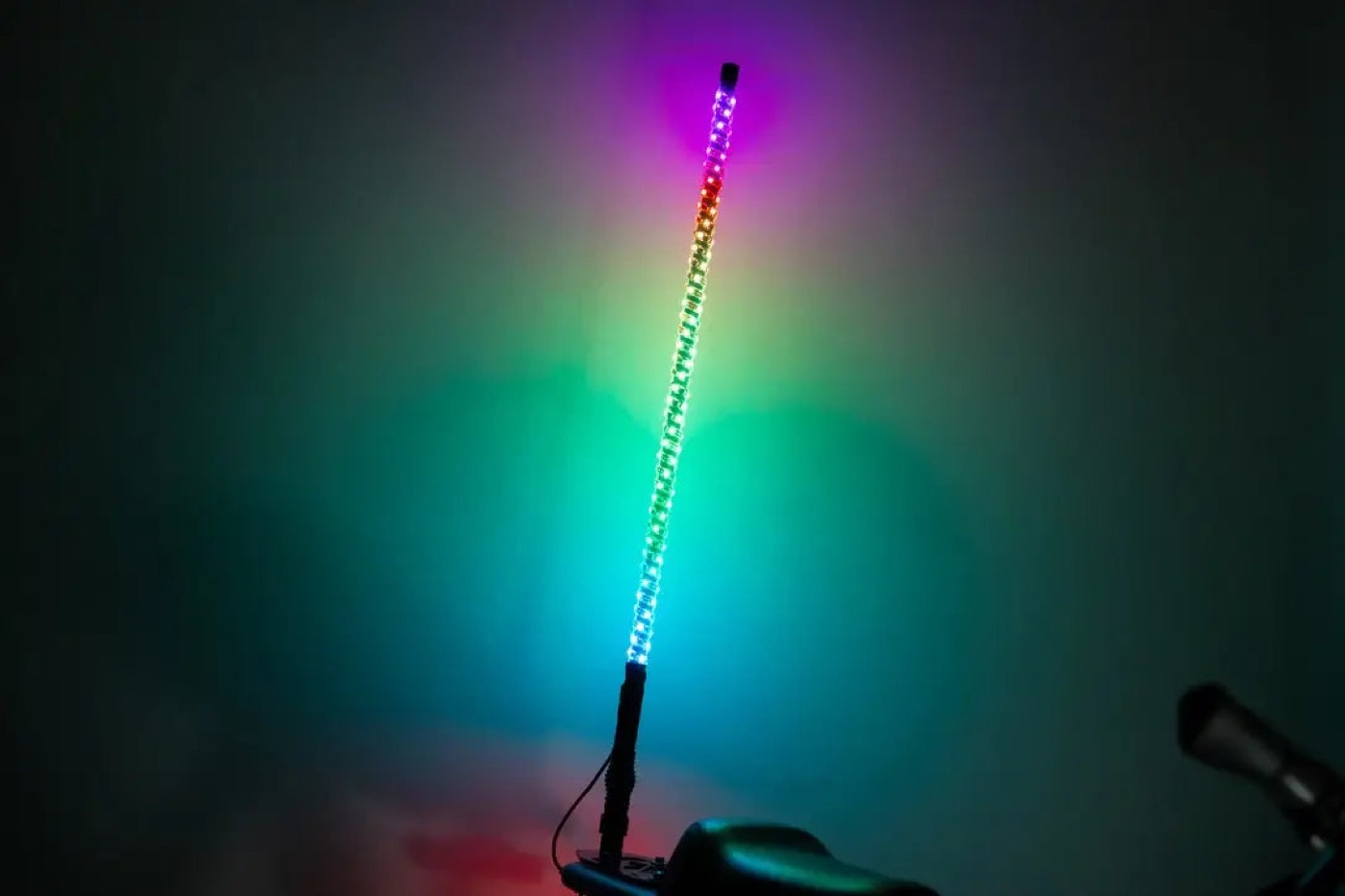

LED Whip Lights$29→
